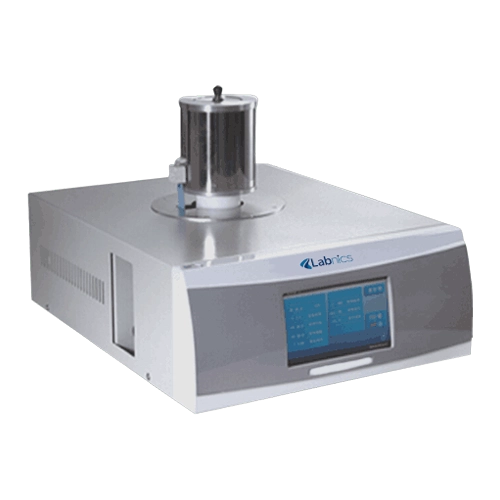

Differential Thermal Analyzer NDTA-101

Differential Thermal Analyzer NDTA-101 is designed with a furnace body and lid. It quantitatively records absorption or emission of heat. The physical and chemical changes occurred in a sample are recorded with respect to a reference inert material at different phase transitions such as crystallization, melting and sublimation etc. The DTA curve states the changes in phase transition depending on time and temperature.

---

$12,438.00

Buy Now Catalog

Specifications

Temperature range	RT to 1350°C
Measurement range, DTA precision	0 to 2000 µV, ± 0.1 µV
Sample analyzed	Solid and liquid Sample
Heating speed	1 to 80°C/ min
Temperature resolution	0.1°C
Temperature accuracy	± 0.1°C
Temperature repeatability	± 0.1°C
Air cooled program control	Built-in speed fan next to furnace body
Atmosphere control	Built-in gas flowmeter (250ml/min maximum)
Display	24 bit color 7 inch LCD touch screen display
Data interface	USB connector, supporting data line, operating software
Power consumption	≤ 2000 W
Power supply	AC 220 V, 50 Hz

Features

• Solid and liquid sample analysis
• Temperature range RT to 1350 °C
• Measurement range 0 to 2000 µV
• Heating speed 1 to 80 °C/ min
• Built-in speed fan to reduce temperature outside furnace body
• Tests relationship between test and reference sample

Applications

• Used in material characterization across analytical chemistry, metallurgy, pharmaceutical industry, food, environmental, construction fields research and testing.
