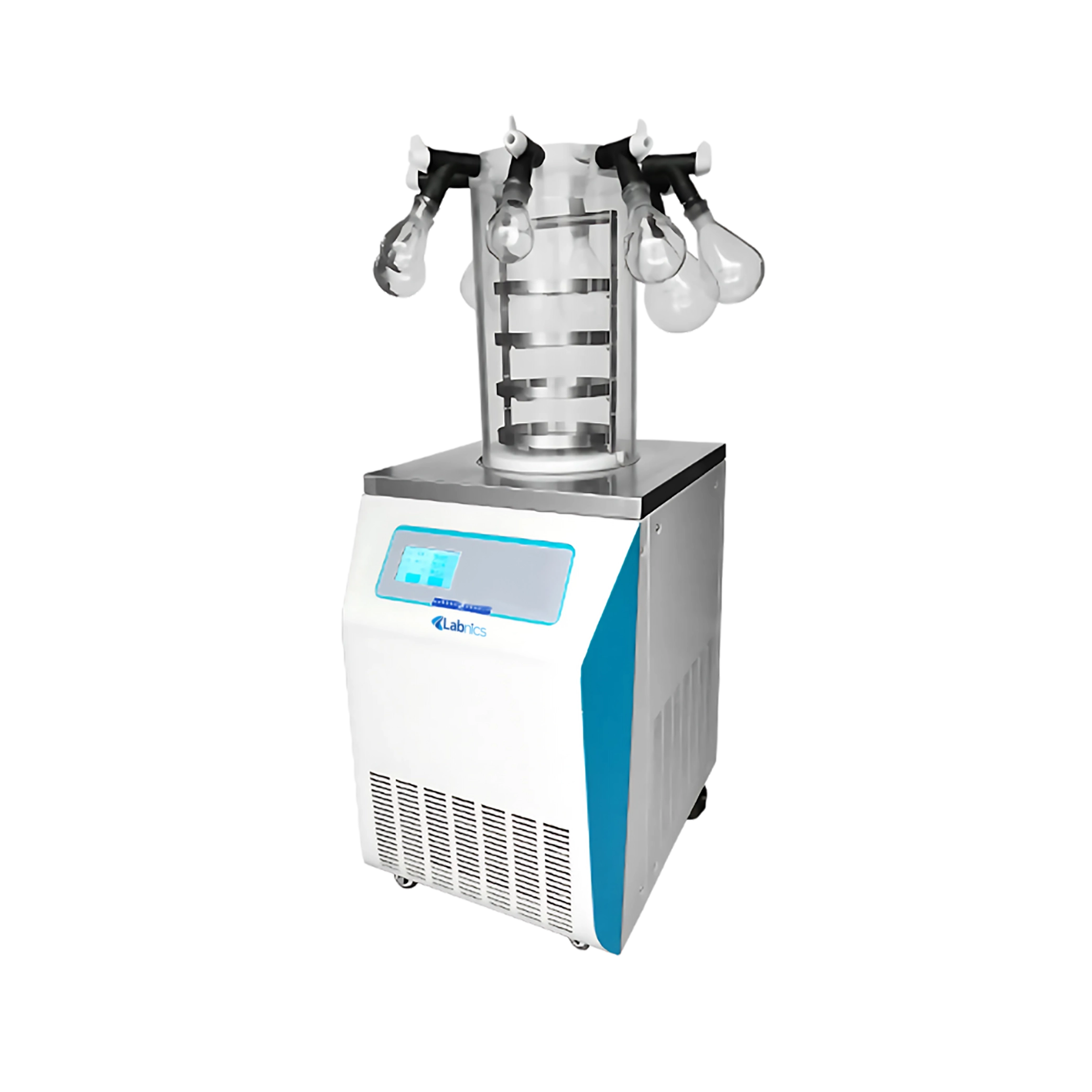

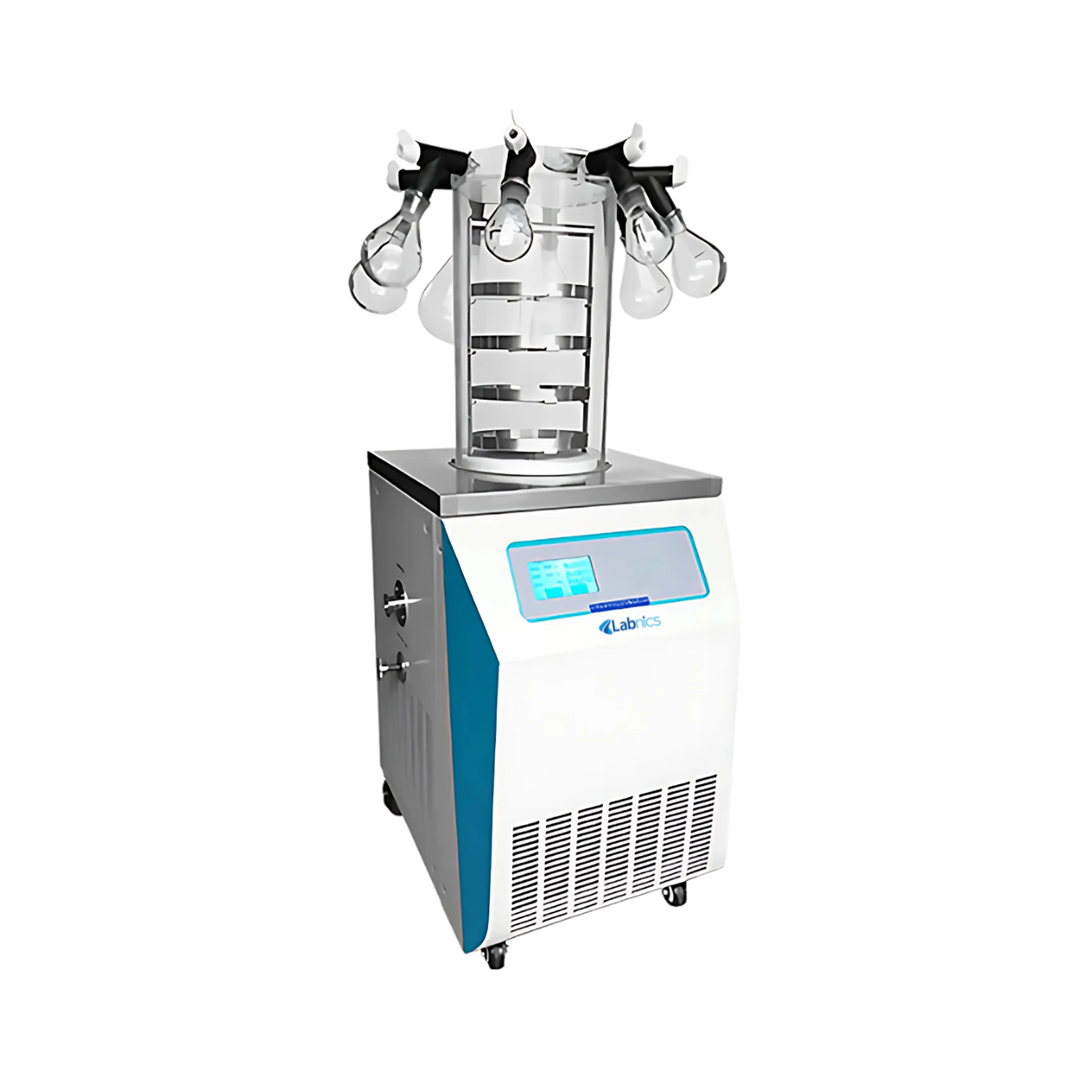

Floor-Type Freeze Dryer NFFD-202

Floor-Type Freeze Dryer NFFD-202 provides a condenser temperature of -50°C and a condenser capacity of 6 kg for optimized performance. It is equipped with sensor calibration functions to ensure long-term accuracy. The unit utilizes a safety control system for regulated shelf heating. It includes a high-speed vacuum pump for efficient vacuum. Our freeze dryer features a real-time alarm system for maintenance alerts.

---

$7,350.00

Buy Now Catalog

Specifications

Drying area	0.12 m²
Condenser temperature	-50°C or -80°C
Vacuum degree	Less than 10 Pa
Condenser capacity	3 to 4 kg/24h
Sample tray	Φ200 × 4
Shelf spacing	70 mm
Shelf temperature range	Ambient temperature to +80°C
Bulk liquid capacity	1.2 L
Vial capacity	Φ12mm: 820 pcs Φ16mm: 460 pcs Φ22mm: 244 pcs
Manifold	8 ports
Flask	1000ml, 500ml, 250ml, 100ml, 50ml
Vacuum Pump Flow Rate	2 L/S, 7.2 m³/h
Power Consumption	1400W
Power Supply	220V/50 Hz
Dimension	580 × 500 × 1180 mm
Weight	110 kg

Features

• LCD touchscreen
• Compact design
• USB data port
• Programmable function
• Low noise operation
• Stainless steel chamber

Applications

• Our Floor-Type Freeze Dryer is used to preserve sensitive pharmaceutical products like vaccines, antibodies, and probiotics by gently removing moisture while maintaining their biological activity and shelf life.
