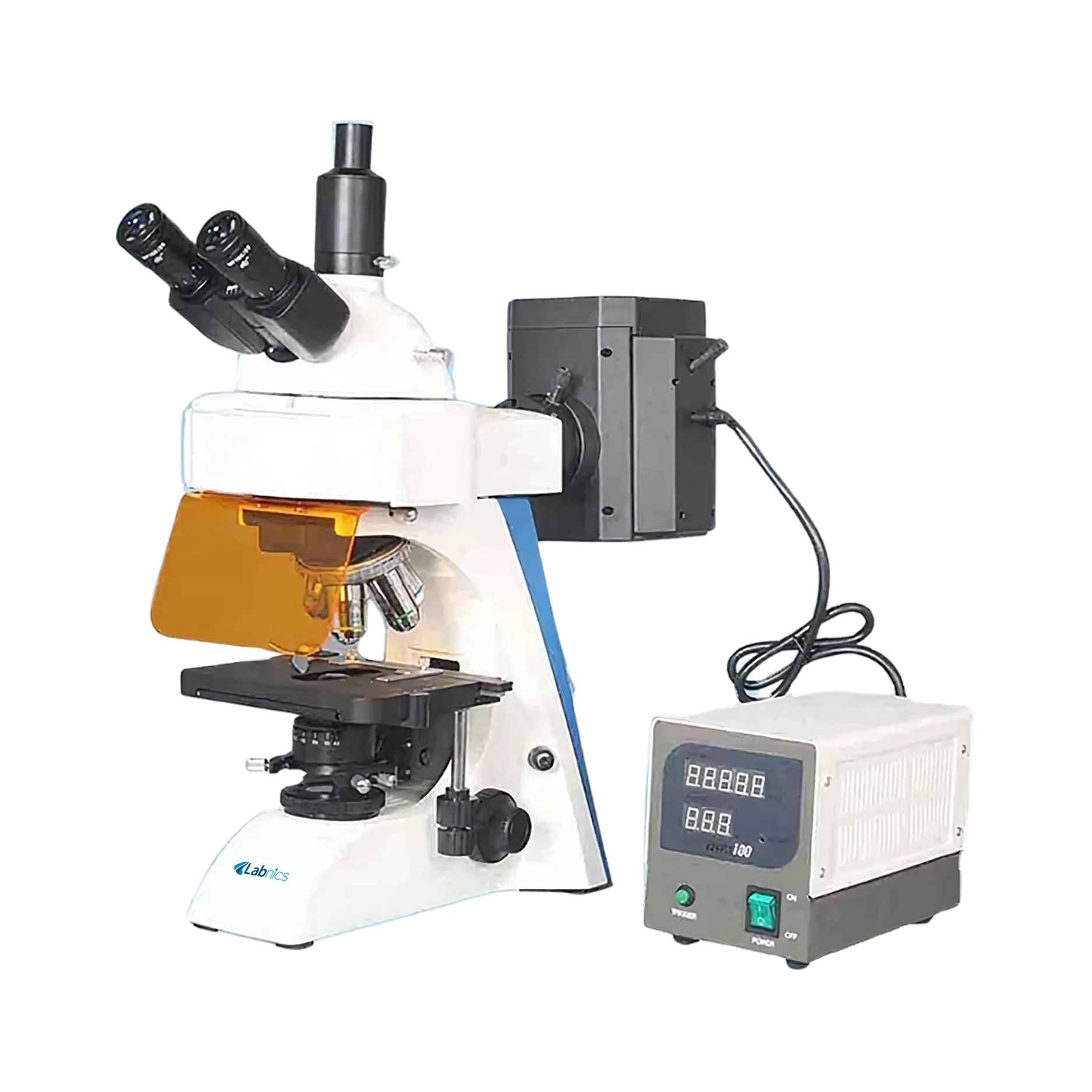

Fluorescence Microscope NFM-200 features a WF10× eyepiece with a 20 mm field of view for wide and clear imaging. It comes with multiple infinity plan objectives for high-contrast observation. This unit is designed with an interpupillary distance range of 50 mm to 75 mm for user comfort. It incorporates a quintuple nosepiece for smooth and quick objective changes. Our microscope provides illumination through either a halogen lamp or a 3W LED with adjustable brightness.
$3,800.00
Specifications
| Eyepiece | WF10×/ 20mm |
| Objectives | Infinity plan objectives: 4×, 10×, 20×, 40×(s), 100× (s, oil) |
| Viewing head | Seidentopf trinocular head, inclined 30°, rotatable 360° Interpupillary distance: 50mm to 75 mm Anti-fungal systems |
| Nosepiece | Quintuple click stop revolving mechanism with multiple ball bearings |
| Stage | Mechanical stage with removable slide holder Stage size: 180 mm×145 mm Travel range: 76mm×52mm, with a right-hand stage handle |
| Condenser | Abbe type N.A=1.25 with iris diaphragm. |
| Focusing | Coaxial coarse and fine focusing adjustment with a rack and pinion mechanism, fine focusing interval 0.002 mm |
| Fluorescence attachment | Epi fluorescence unit (B, G) Epi fluorescence unit (B, G, U, V) 100W mercury power source(pointer or digital) 100W mercury lamp house Centering objective |
| Illumination | 6V/30W halogen lamp or 3W LED, adjustable brightness |
| Power supply | 85V to 265V |
| Product dimension | 650 × 420 × 490 mm |
| Packaging dimension | 720 × 520 × 580 mm |
| Net weight | 18 kg |
| Gross weight | 21 kg |
Features
Applications
Optional Accessories
1× C-mount
0.57× C-mount
Infinite objective: 60(S)
WF16×/13mm
Phase contrast attachment
WF10× (reticule 0.1mm)
Ask Expert
FAQ for Fluorescence Microscope NFM-200
1: How comfortable is the Fluorescence Microscope NFM-200 to use for extended periods?
Our Fluorescence Microscope features a Seidentopf trinocular head inclined at 30° with adjustable interpupillary distance, which helps reduce strain during long sessions. The ergonomic design supports easy and fatigue-free viewing, even during continuous work.
2: Is the stage easy to operate and adjust?
The mechanical stage includes a removable slide holder and a right-hand stage handle for smooth movement. Its large travel range and stable platform make it easy to position and examine samples with accuracy.
3: Is the Fluorescence Microscope NFM-200 suitable for capturing and sharing images digitally?
Our Fluorescence Microscope includes a trinocular head, allowing you to attach a camera for image documentation or live sharing. This is especially useful for research, teaching, or collaborative analysis.
4: What safety or durability features does the Fluorescence Microscope have?
Our Fluorescence Microscope is built with a durable frame and features an anti-fungal optical system to protect the internal optics. This ensures long-term performance, even in high-humidity environments.
5: How should the Fluorescence Microscope NFM-200 lenses be cleaned?
Lenses should be cleaned gently using lens paper or a soft microfiber cloth with a small amount of lens cleaning solution. Avoid using rough materials or excessive pressure to prevent scratching or damaging the optical surfaces.
