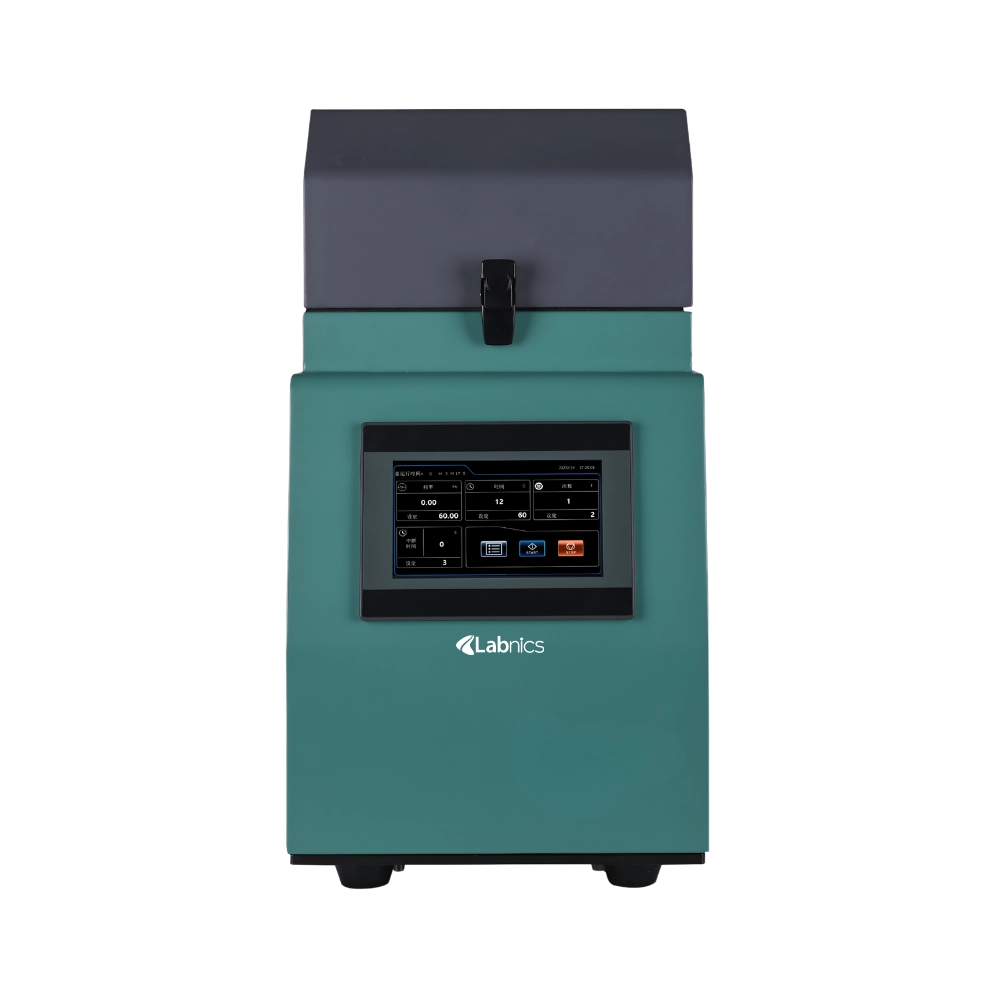

High Throughput Tissue Grinder NHTG-102

High Throughput Tissue Grinder NHTG-102 operates at a range of up to 2100 rpm, ensuring consistent particle refinement. Our unit includes a user-friendly display for smooth operation and monitoring. It features a vertical stroke movement that provides reliable performance. It protects against intensive use in advanced lab applications. This grinder supports high-throughput workflows with a broad vibration frequency for efficient sample processing.

---

$5,600.00

Buy Now Catalog

Specifications

Sample handling capacity	192×0.2 to 0.5ml 96×2ml 36×5 to 10ml 24×15ml 4×25ml 4×50ml Choose two of them
Vibration frequency range	0 to 70HZ, 0 to 2100rpm
Typical crushing time	155 to 2min
Liquid-crystal display	7-inch touch screen, display working status, convenient and Intuitive operation
Number of grinding platforms	More than 2 grinding tanks can be used
Feed and discharge size	Maximum feed size: no requirement Final discharge particle size: ≤3µm.
Grinding bead material	Hard steel, stainless steel, tungsten carbide, agate, zirconia, ceramic, chrome steel, quartz sand
Grinding bead size	0.1 to 30mm
Liquid nitrogen pre-cooling function	Yes
Stroke of fixture	40mm(vertical)
Grinding time range	OS 99995
Grinding tank material	Hard steel, stainless steel, tungsten carbide, agate, zirconia, TEfion aluminum alloy
Speed up/speed cut	Maximum speed was reached within 2 seconds. Minimum speed was reached within 2 seconds
Noise level	<50dB
Type of protection	IP 30
Power	350W
Dimensions (L×W×H)	520×380×520mm

Features

• Quick speed adjustment
• Durable construction
• LCD screen
• Easy to operate
• Safety lock

Applications

• High Throughput Tissue Grinder NHTG-102<strong> </strong>allows uniform mixing. It is used in clinical diagnostics, pharmaceuticals, forensic labs, and mineral industries.
