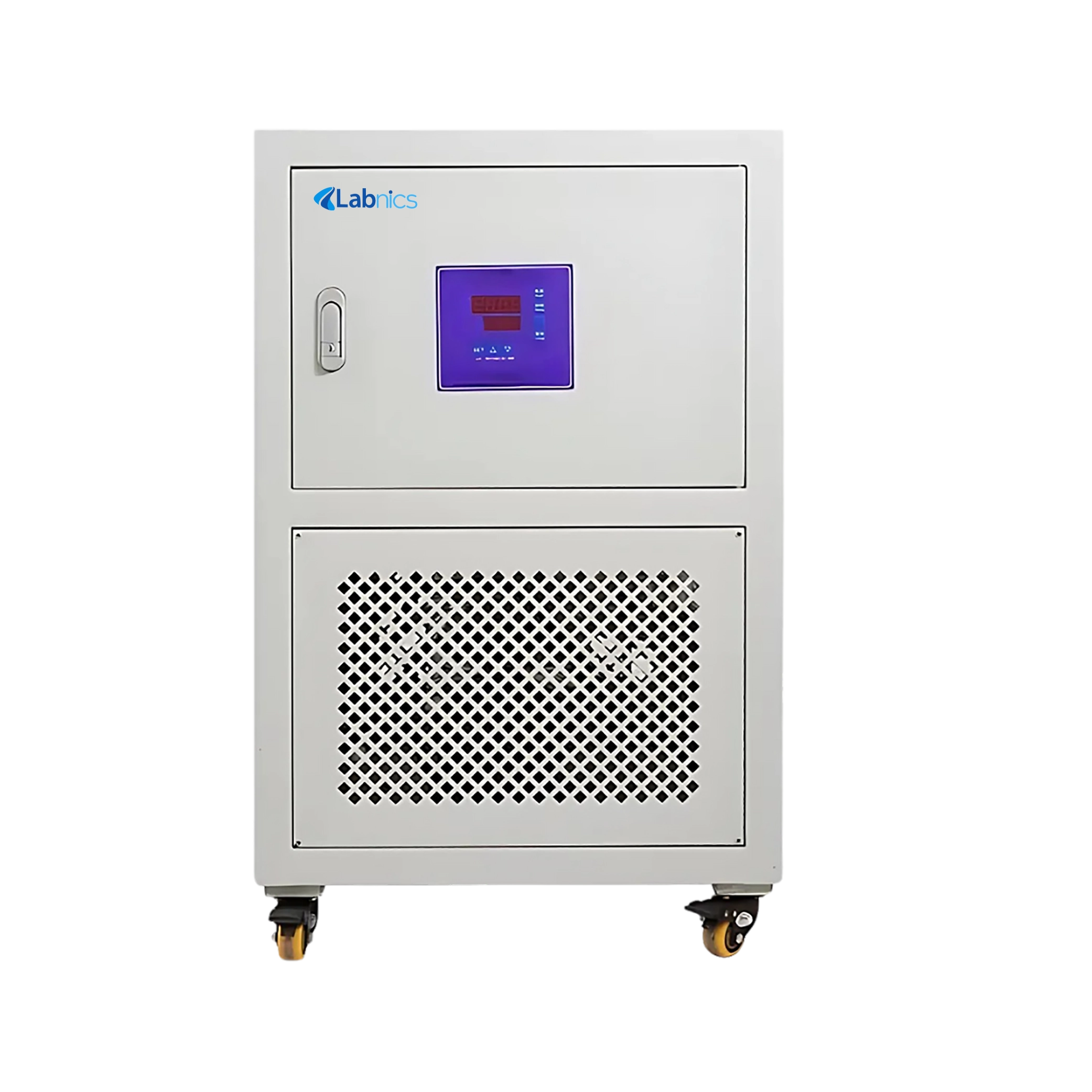

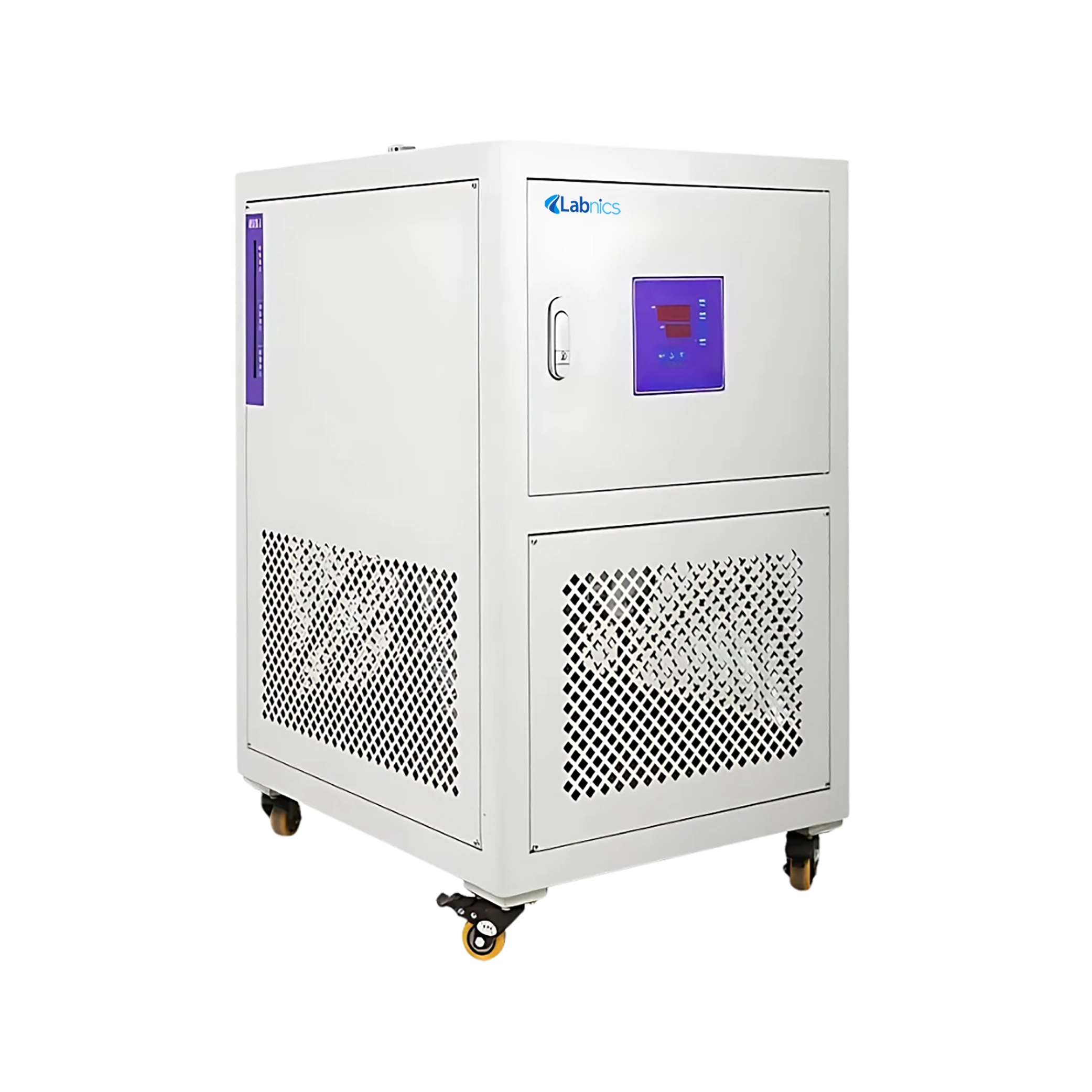

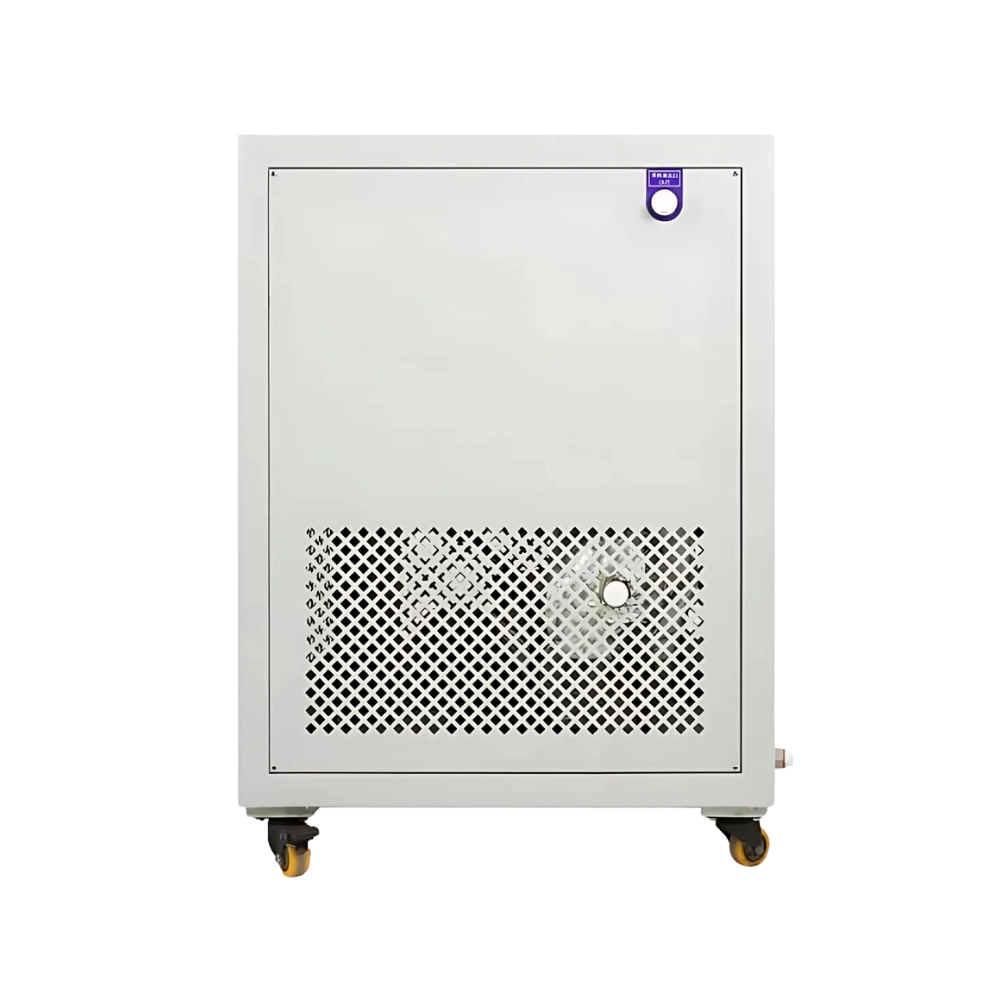

Refrigerated And Heating Circulator NRHC-100

Refrigerated and Heating Circulator NRHC-100 offers a wide temperature range from -30℃ to 200℃ for accurate regulation. It uses an intelligent PID control system to maintain stability in thermal adjustments. This unit includes a DN20-sized liquid inlet and outlet ports to facilitate smooth fluid transfer. It provides a pump flow of 40 L/min for the movement of heat-conducting substances. Our circulator ensures a controlled environment by preventing mist and moisture formation.

---

$7,413.00

Buy Now Catalog

Specifications

Temperature range	-30 to 200°C
Temperature precision	±0.5°C
Temperature setting and display	Push-button input, LED display
Circulator pump flow rate	40 L/min
Circulator pump pressure	0.8 bar
Compressor	Emerson Copeland
Expansion valve	Danfoss
Evaporator	Plate heat exchanger
Liquid inlet and outlet port size	DN20
Temperature probe	PT100
Cooling method	Air cooling
Refrigerant	R404A
Pipe and expansion tank material	SUS304
Control mode	Intelligent PID
Safety protection	Self-diagnostic functions, compressor overload protection, exhaust pressure protection, circulating pump overload protection, low liquid level protection, phase loss and phase error protection, and other multiple protection functions
Heating power	3.5 kW
Refrigerating capacity (200°C)	3.5 kW
Refrigerating capacity (20°C)	3.5 kW
Refrigerating capacity (-10°C)	3 kW
Refrigerating capacity (-25°C)	2.5 kW
Power supply	AC380, 50HZ
Product dimension	600×700×970mm
Packaging dimension	850×730×1250mm
Net weight	150kg
Gross weight	190kg

Features

• LED display panel
• Uniform temperature distribution
• Built-in safety features
• Reliable compressor system
• Corrosion-resistant materials
• Low noise operation
• Eco-friendly refrigerant
• Automatic fault detection

Applications

• Refrigerated and Heating Circulator NRHC-100 is used for precise temperature control in laboratories and industries to ensure stable heating and cooling processes. It is widely applied in chemical research, pharmaceutical production, biotechnology, and material testing facilities

Standard Accessories

Machine

2 pcs of metal insulation hoses
