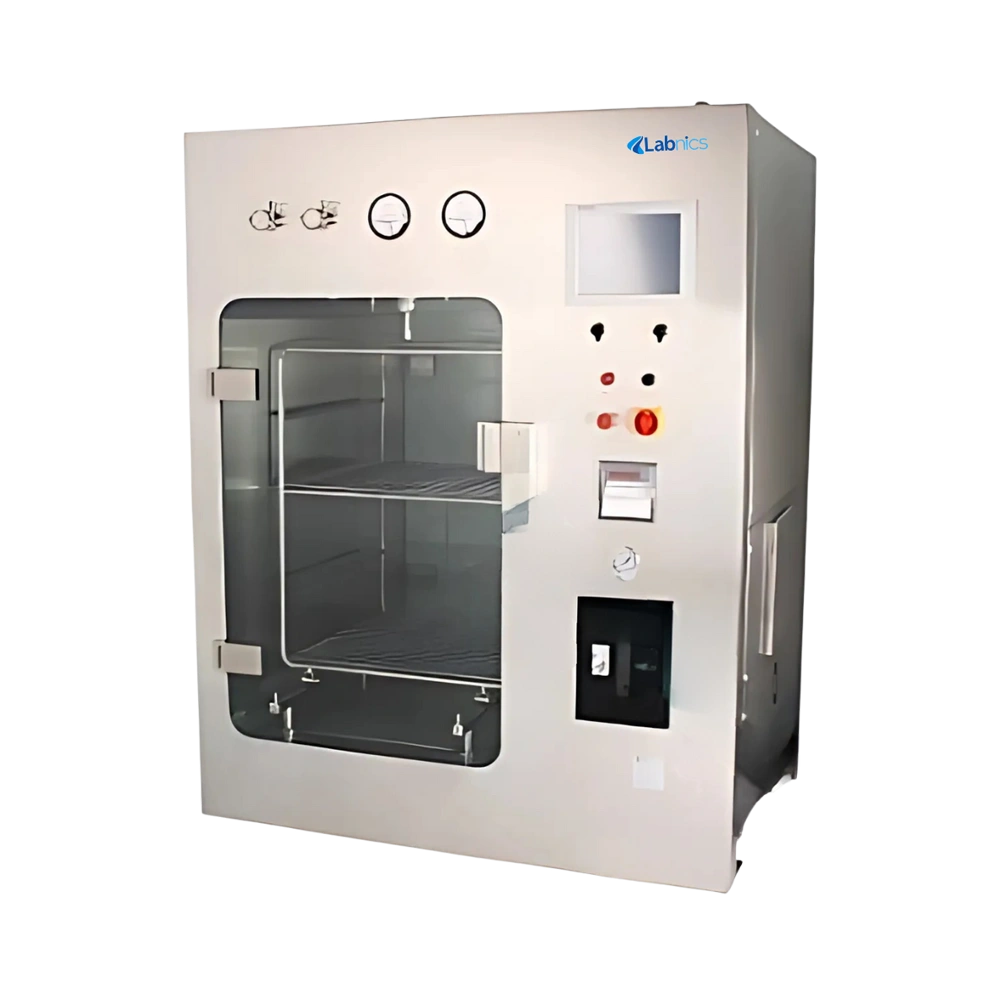

Sterile Transfer Chamber NSTC-200 has a SUS 304L stainless steel chamber with Class A cleanliness and 6-log decontamination efficiency. This is equipped with dual pneumatic doors for controlled material transfer. It has an independent exhaust system that ensures efficient removal of hydrogen peroxide gas, safeguarding cleanroom conditions. Our unit offers electronic data tracking for real-time monitoring and traceability of decontamination cycles. This chamber is designed to deliver reliable, automated sterile transfer in high-risk environments.
| Chamber Material |
SUS 304L stainless steel |
| Cleanliness Level (Cabin) |
Class A |
| Biological Decontamination Efficiency |
6-log killing rate |
| Residual H₂O₂ Concentration |
≤ 1 ppm |
| Decontamination Cycle Time |
< 60 minutes |
| Filtration System |
Supply Air HEPA: H14 level |
| Exhaust Interface |
DN50 sanitary interface |
| H₂O₂ Circulation Interface |
DN32 sanitary interface |
| Inlet/Outlet Design |
Pneumatic double doors with sealing, locking, and interlocking |
| Ventilation & Exhaust System |
Independent fan, pneumatic butterfly valve, exhaust pipeline |
| Real-time Monitoring |
Temperature, humidity, pressure |
| Alarm System |
High/low pressure alarm, door open overtime alarm, door lock alarm |
| Control System |
SIEMENS Programmable Logic Controller (PLC) |
| Audit Features |
Electronic signature and data tracking |
| Work Space |
1000×1000×1000 mm |
| Dimension |
1700×1030×1750 mm |
FAQ for Sterile Transfer Chamber NSTC-200
1: What makes the Sterile Transfer Chamber NSTC-200 suitable for GMP cleanroom applications?
Sterile Transfer Chamber NSTC-200 complies with GMP regulations by offering Class A clean conditions, HEPA filtration, and automated control via a Siemens PLC system. Its traceable logging features ensure audit readiness and regulatory compliance.
2: Can I monitor the chamber’s environment during operation in Sterile Transfer Chamber NSTC-200?
Yes, Sterile Transfer Chamber NSTC-200 includes real-time sensors that monitor internal temperature, pressure, and humidity. These readings are critical for maintaining environmental integrity during sterile material transfer.
3: How does the dual-door system enhance contamination control in Sterile Transfer Chamber NSTC-200?
The pneumatic double-door system includes interlocking and sealing features. Sterile Transfer Chamber NSTC-200 ensures that both doors cannot open simultaneously, minimizing the risk of cross-contamination.
4: What kind of alarm systems are integrated in Sterile Transfer Chamber NSTC-200?
Sterile Transfer Chamber NSTC-200 includes high and low-pressure alarms, door-open time alerts, and lock status warnings. These systems help protect both the process and personnel from unsafe operation.
5: Does the Sterile Transfer Chamber NSTC-200 support data management?
Yes, Sterile Transfer Chamber NSTC-200 features an electronic signature and data tracking, enabling full traceability. It also supports data saving and printing of decontamination cycle records for documentation and audits.
6: What is a sterile transfer chamber used for?
A sterile transfer chamber is used to safely transfer materials between classified environments without introducing contamination, ensuring aseptic conditions are maintained.
7: What type of filtration is used in sterile transfer chambers?
Most chambers use H14-grade HEPA filters, capable of capturing 99.995% of airborne particles, offering Class A cleanliness as per cleanroom standards.
8: Can the system log and track data?
Yes, advanced models include electronic signature and data tracking, ensuring traceability for all decontamination cycles, essential for GMP compliance.
9: Is it suitable for hydrogen peroxide vapor sterilization?
Absolutely. These chambers support bio-decontamination cycles using hydrogen peroxide vapor and feature automatic ventilation and exhaust systems to remove residuals.
10: Are validation documents provided with the system?
Yes, most systems come with complete IQ (Installation Qualification), OQ (Operational Qualification), and PQ (Performance Qualification) documentation for compliance and on-site verification.
